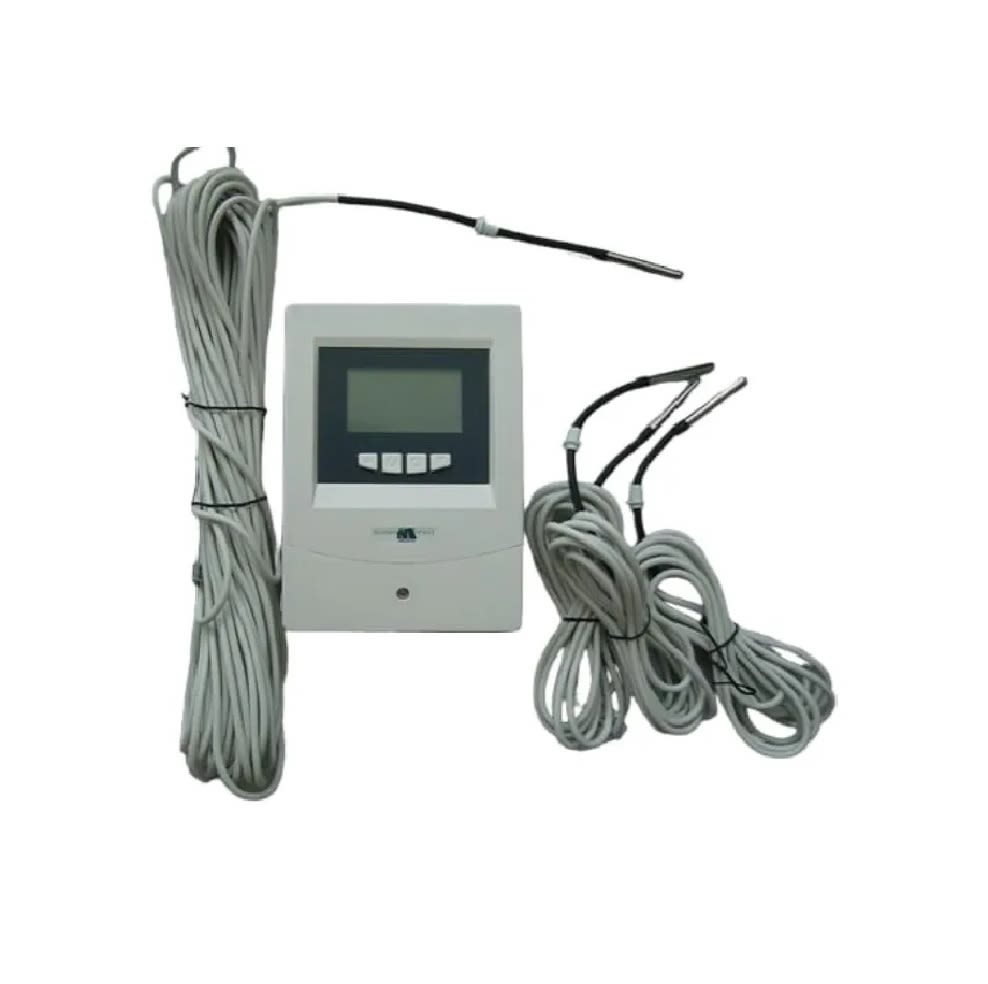

Controlador Solar Digital Para Split Sm-ss-f

Controlador Solar Digital Para Split Sm-ss-f

Descripción

1.       SIze:120mm x165mmx45mm

2.       Ambient temperature:-20°C~ 50°C

3.       Water proof grade: IP40

4.       Power supply:AC220V+-10% 50Hz

5.       Power consumption: 2W

6.       PT 1000 sensors:-20°C ~ 200°C

7.       NTC 5K sensor of Tank:-20°C~ 120°C

8.       NTC 5K sensor of hot water pipe: -20°C~ 120°C

9.       Power consumption of solar pimp 250w

10.   Power consumption of circulation pump: 250w

11.   Power consumption of electric heating device: 3000w

Main function

1.       Query temperature and working state of sensors

2.       Temperature difference circulation

3.       Hot water pipe circulation

4.       Electric heating

5.       High temperature protection

6.       Sterilization protection
